Do Refrigerant Lines Need to Be Pressure Tested?

Do Refrigerant Lines Need to Be Pressure Tested?

Introduction

Pressure testing refrigerant lines is one of the most important steps during a mini split installation. While modern ductless systems are highly reliable, many issues that appear during the first year of operation are related to installation rather than equipment failure.

In fact, a large percentage of early system issues are caused by installation mistakes rather than manufacturer defects. Proper leak testing can prevent these problems before the system is placed into operation.

Why Pressure Testing Is Important

Refrigerant systems must remain completely sealed to operate correctly. Even a very small leak can eventually cause refrigerant loss and system performance issues.

Pressure testing with nitrogen allows installers to verify that:

• flare connections are sealed properly
• copper tubing has not been damaged during installation
• the system is leak-free before evacuation and charging

Skipping this step can lead to leaks that may not become noticeable until weeks or months after installation.

Recommended Pressure Testing Procedure

Many professional installers recommend pressure testing mini split refrigerant lines using dry nitrogen.

A common testing method is:

• pressurize the system to approximately 500 psi
• allow the system to sit for about one hour
• monitor the pressure for any changes

If the pressure remains stable, the system can then be safely evacuated with a vacuum pump.

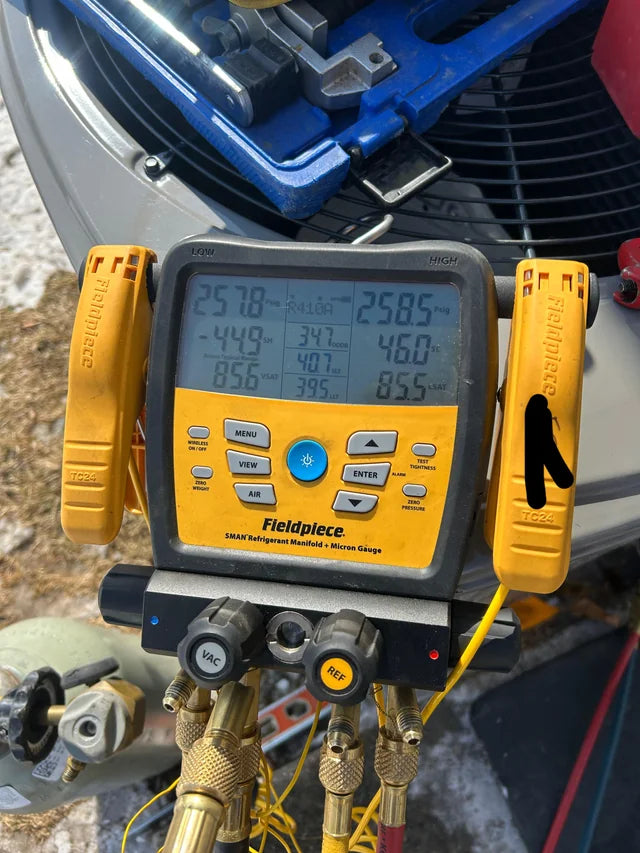

Digital Gauges Improve Accuracy

Using a digital pressure gauge can make pressure testing much easier and more accurate.

Digital gauges allow installers to monitor very small pressure changes, sometimes as little as 1/10 PSI, which can help detect extremely small leaks.

Older analog gauges are still usable, but they may not provide the same level of precision when monitoring small pressure changes.

Small Initial Pressure Drops Can Be Normal

Many installers notice that pressure may drop slightly during the first few minutes after pressurizing the system.

This can occur as the nitrogen equalizes throughout the entire refrigerant circuit, including the indoor unit and connecting lines.

Because of this, it is often best to allow the system a few minutes to stabilize before carefully monitoring the pressure readings.

After the system stabilizes, the pressure should remain steady during the test period.

Preventing Installation Problems

Proper pressure testing combined with correct flare connections and vacuum procedures helps ensure long-term system reliability.

Taking the time to perform this step carefully can prevent refrigerant leaks and reduce the likelihood of service calls after installation.
